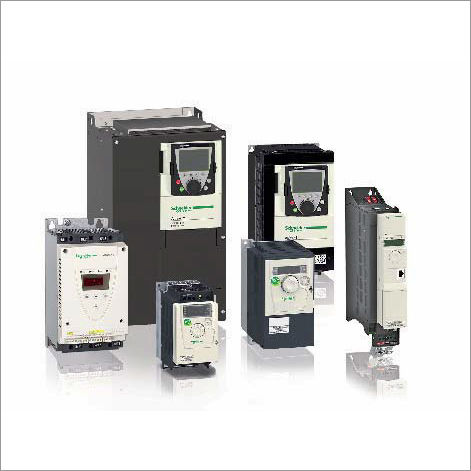

Schneider AC Drives
8800 INR/Piece
Product Details:
- Cache Other
- Size mm
- Warranty 12 month
- Click to View more
X
Schneider AC Drives Price And Quantity
- 1 Piece
- 8800 INR/Piece
Schneider AC Drives Product Specifications
- 12 month
- Other
- mm
Schneider AC Drives Trade Information
- 1000 Piece Per Month
- 1 Week
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- All India
Product Description
Product Specification
| Product Attribute | Attribute Value |
| Application | Variable Frequency |
| Series | Altivar ATV 312 Series |
| Current Rating | 5.5 A |
| For Use With | 3-Phase Motors |
| Frequency | 0-500 |
| Frequency, Output | 50 to 60 Hz |
| Length, Overall | 7.244" (184mm) |
| Mounting Type | Panel Mount |
| Power Rating | 2.2 kW |
| Standards | C-Tick, CE, CSA, GOST, IEC 61800-3, IEC 61800-5-1, NOM, UL |
| Supply Voltage | 500 V |
| Temperature, Ambient | -10 to +50 (With Protective Cover), -10 to +60 (Without Protective Cover)oC |
| Type | Variable Frequency |
| Function | Motor Control |
| Depth, Overall | 5.984" (152mm) |
| Driver Type | Variable Speed |
| Enclosure Rating | IP21 |
| Horsepower Rating | 3 HP |
| Voltage Rating | 480 V |
| Width, Overall | 5.591" (142mm) |
| Primary Type | AC Drive |
| Communication | Modbus |
| Phase | Three |
| Dimensions, Overall | 5.984 x 7.244 x 5.591" (152 x 184 x 142mm) |
| Special Features | Configuration Via Mobile Phone, DeviceNet, Ethernet Modbus & Fipio Modbus Gateway, Integrated EMC Filter, Intuitive Navigation, Modbus & CANopen Integrated, PROFIBUS DP, Usable in All Environments |
| IP Rating | IP20 |
| Motor Power Rating | 2.2 kW |
| UPC Code | 785901822967 |
Overview

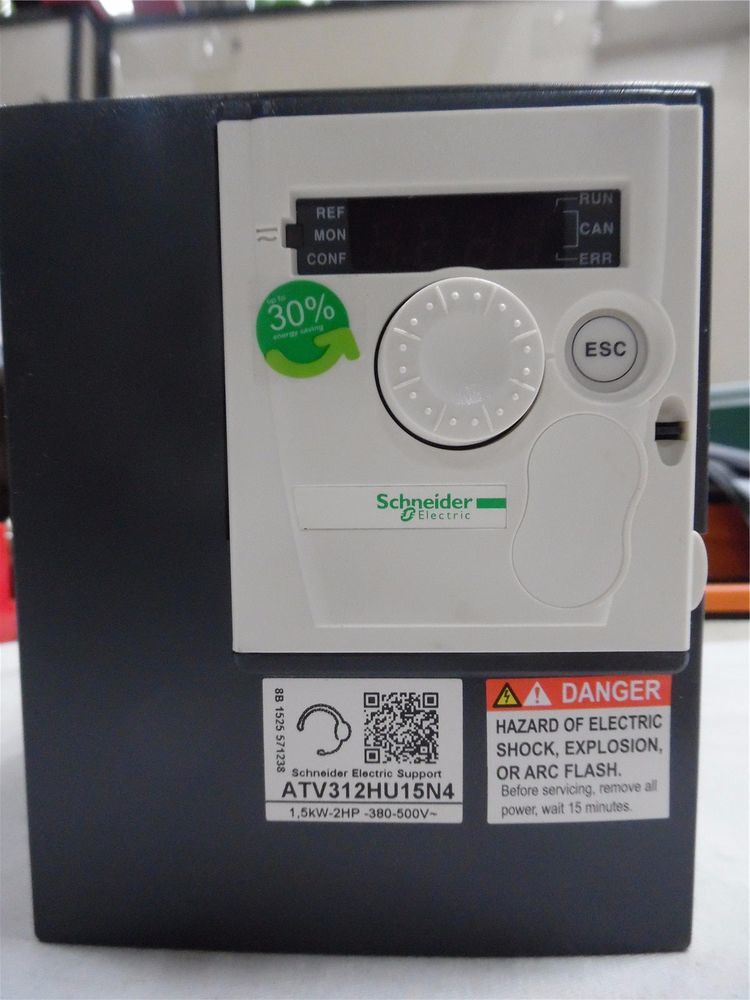

Schneider Electric Altivar 312 Series - Drives for Compact Machines from 0.18 to 15 kW:
The Altivar 312 range is designed for robustness and compatibility with the control system architectures of your machines. Extremely user-friendly yet packed with advanced communication features!
The Altivar 312 drive is robust, compact and easy to install. Its integrated functions are particularly suitable for the requirements of applications involving simple industrial machines. By taking account of constraints on product setup and use right from the design stage, we are able to offer a reliable, cost-effective solution to manufacturers of simple machines and installers. With its various communication cards that are available as options, the Altivar 312 drive integrates perfectly in the main control system architectures.
Features:
- The compact size means smaller enclosures (integrated EMC filter and side-by-side mounting without derating)
- All the advantages of Altivar 31: Full mechanical and software compatibility with the Altivar 31 in event of replacement
- Excellent resistance to harsh environments (50o)
- Coated cards as standard (IEC 60721-3-3 Classes 3C2 and 3S2)
- Excellent resistance to power supply and motor interference
- CANopen Daisy Chain, DeviceNet, Profibus DP
- Option cards: CANopen Daisy Chain, DeviceNet, Profibus DP
- Gateways for Ethernet/Modbus and Fipio/Modbus
- Auto-tuning saves setup time and optimizes performance
- Remote graphic display terminal for remote configuration
- Reduced design and installation costs thanks to the SoMove software workshop
- Direct from PC to drive using a USB/RJ45 cable
- Without a PC, via an SD memory card using Multi-Loader
- Work in comfort using Bluetooth wireless communication
- Integrated Class 2 EMC filter for radiated and conducted emissions
- Local control integrated in the drive (programmable)
- Positive and negative logic
- DIN rail mounting
- UL Type 1 kit
Applications:
- Materials handling and packaging
- Packing
- Textile machines
- Special machines
- Pumps and fans
Product details
| Usage/Application | Pump, Crane, Industrial, Conveyors, Lift |
| Display | Digital |
| Application | Chemical Industry, Cranes and Hoists, Food and Beverage Industry ,Elevators and Escalators Industry |
| Input Phase | 3 - Phase |
| Motor Power | 1 HP to 1000 HP |
| Brand | Schneider |
